Electronic Dia Shapes
Dia Shape Repository / Electronic Shapes
Additional shapes that can be added to the Dia toolbox. Extract the files to your .dia folder and restart Dia.
The shapes are licensed under the terms of the GPL.
electronic.zip - electronic shapes by Jarda Benkovsky.

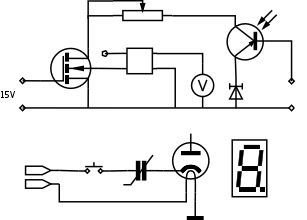

Electronic example diagram
electronic.dia - Example diagram in Dia format
Shape list
The following shapes are included in the package:
 | Antenna |
 | Bell |
 | Button |
 | Capacitor |
 | Electrolytic capacitor |
 | Crystal |
 | Di-Gate |
 | Diac |
 | Engine |
 | Headphone |
 | Inverse diode |
 | Schottky diode |
 | Tunnel diode |
 | Zenner diode |
 | Inductor |
 | LED display |
 | Microphone |
 | Photo-emiting part |
 | Photosensitive part |
 | Potenciometer |
 | Ground |
 | Contact |
 | Contact Pair |
 | IN Port |
 | OUT Port |
 | IN/OUT Port |
 | Voltmeter |
 | Ampermeter |
 | Source or Meter |
 | Current source |
 | Substitute linearised source |
 | Voltage source |
 | Alternating voltage source |
 | Direct voltage source |
 | Bipolar transistor NPN |
 | Bipolar transistor NPN |
 | Bipolar transistor PNP |
 | Bipolar transistor PNP |
 | JFE transitor - N |
 | JFE transistor - P |
 | MISFE conducting transistor - N |
 | MISFE conducting transistor - P |
 | MISFE inducting transistor - N |
 | MISFE inducting transistor - P |
 | Single ..... transistor |
 | Triac |
 | Diode tyristor, blocking |
 | Triode tyristor, blocking |
 | Vacuum diode |
 | Vacuum pentode |
 | Vacuum triode |
 | Linear variable part |
 | Nonlinear variable part |
 | Varicap |
